Equipment introduction:

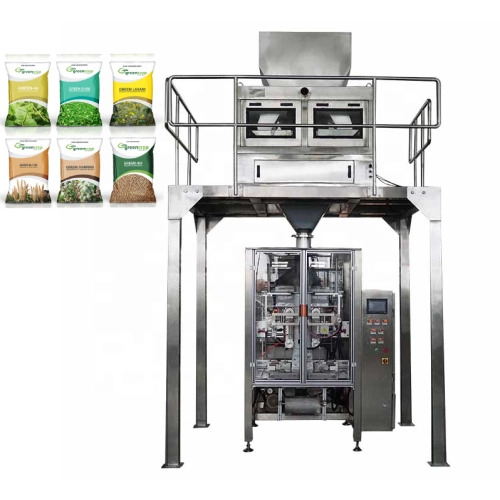

1.This set of automatic weighing and packing system

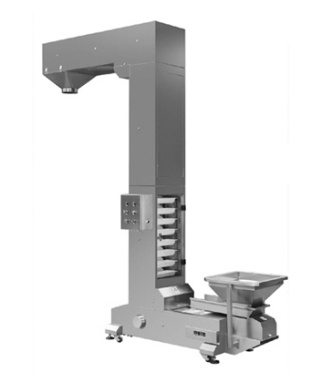

(1).Z Type bucket elevator with vibration feeder
(2).4 Heads linear weighing machine

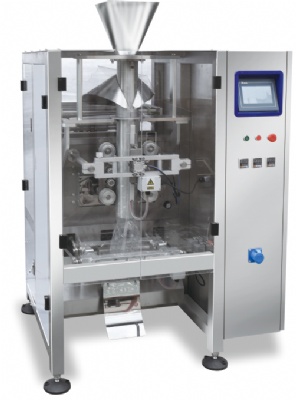

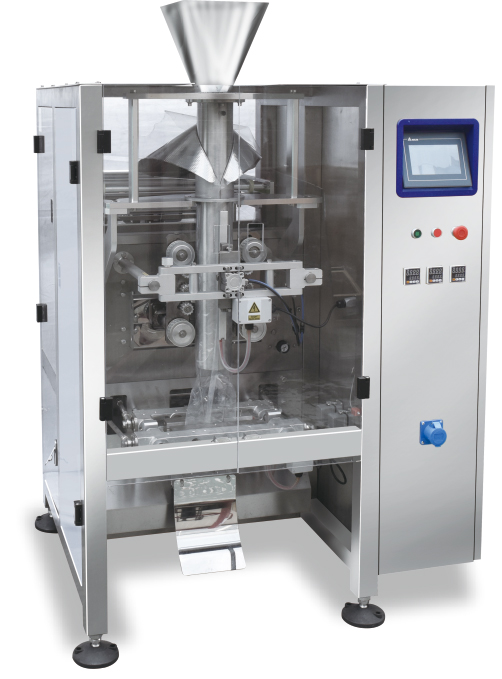

(3).Automatic vertical packaging machine
(4).Working platform
(5).Product conveyor
2.Feature:
The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material.
3.Applicable scope:
Suitable for fine particle material, refined sugar, brown sugar, washing powder, seeds, feeds, seasoning powder packaging.
Technical Parameters:
Model (Roll film width) | 320 | 420 | 540 | 730 | 920 | 1100 | 1500 |
Bag Length(mm) | 80-180 | 80-300 | 80-400 | 100-400 | 150~600 | 200~900 | 200-1000 |
Bag Width(mm) | 45-150 | 50-200 | 80-250 | 180-350 | 150~450 | 150~530 | 200~730 |
Max Width of Roll(mm) | 320 | 420 | 520 | 720 | 920 | 1100 | 1500 |
Packing Speed(bags/min) | 20-55 | 20-80 | 20-100 | 20-100 | 10~90 | 10-80 | 5-50 |
Air Consumption(Mpa) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Power Voltage (v) | 220v/380v | 220V/380v | 220v/380v | 220v/380v | 220v/380v | 220v/380v | 220v/380v |
Power (kw) | 3kw | 2.2KW | 4kw | 5kw | 5kw | 6kw | 6kw |
Weight(kg) | 350 | 540 | 600 | 900 | 1000 | 1100 | 1200 |

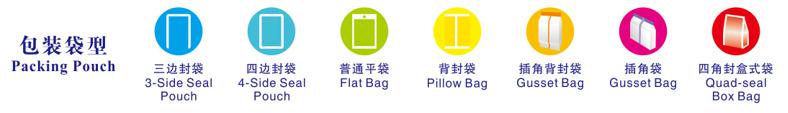

Packing Pouch Type:
Optional Items:
1): Nitrogen filling function
2): Venting device
3): Gusset device
4): Hook the hole cutter seat
5): Date Printer
