Equipment introduction:
1.This set of automatic weighing and packing system

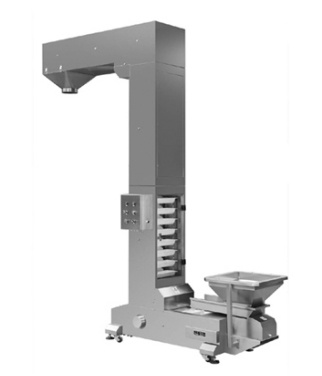

(1).Z Type bucket elevator with vibration feeder

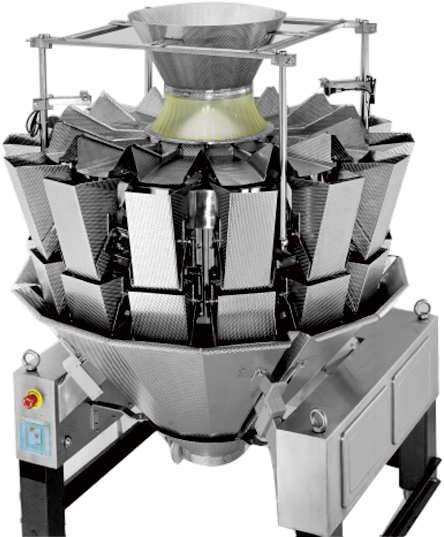

(2).Computer combination weighing machine

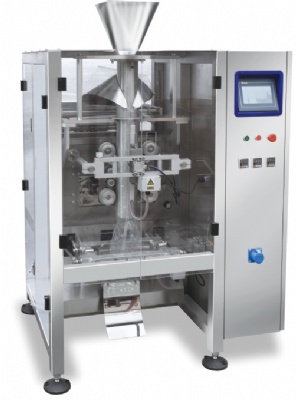

(3).Automatic vertical packaging machine
(4).Working platform
(5).Product conveyor
2.Feature:
The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material.
3.Applicable scope:
The machine is suit to pack anomalous solid and the granule material, such as: puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.

Technical Parameters:

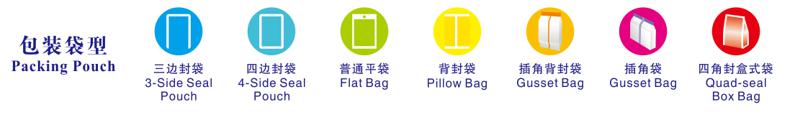

Packing Pouch Type:

Optional Items:

1): Nitrogen filling function

2): Venting device

3): Gusset device
4): Hook the hole cutter seat
5): Date Printer

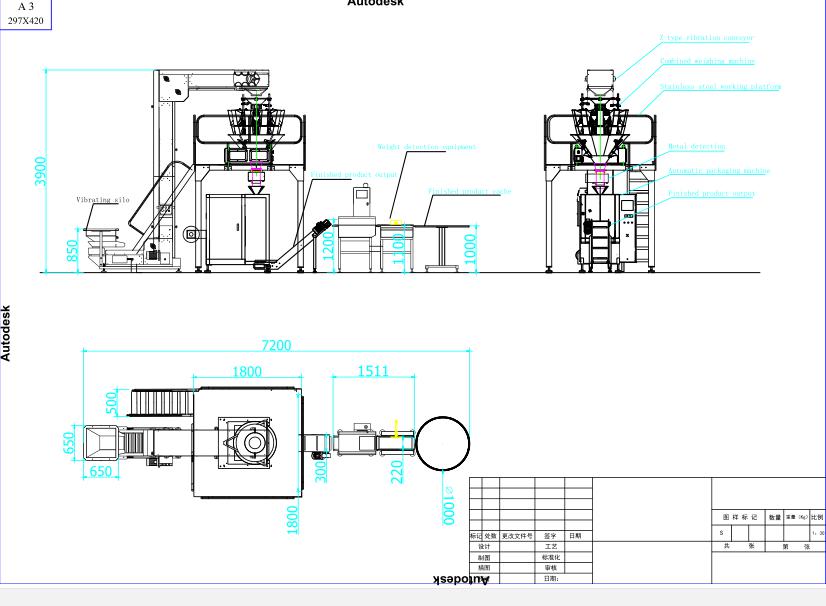

Outline Drawing:
